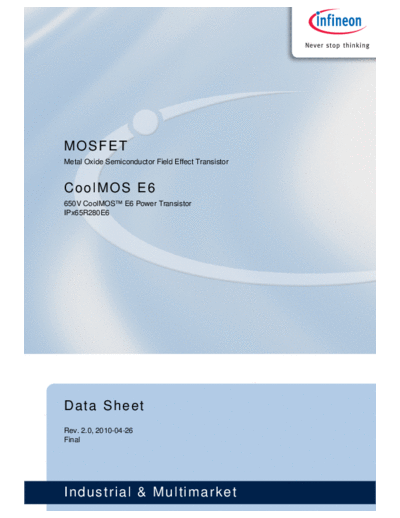

Image preview - the first page of the document
>> Download ipb65r280e6_2_0 documenatation <<
Text preview - extract from the document
MOSFET
Metal Oxide Semiconductor Field Effect Transistor
CoolMOS E6
650V CoolMOSTM E6 Power Transistor
IPx65R280E6
Data Sheet
Rev. 2.0, 2010-04-26
Final
In d u s tr ia l & M u l ti m a r k e t
650V CoolMOSTM E6 Power Transistor IPA65R280E6, IPB65R280E6
IPI65R280E6, IPP65R280E6
IPW65R280E6
1 Description
CoolMOSTM is a revolutionary technology for high voltage power
MOSFETs, designed according to the superjunction (SJ) principle
and pioneered by Infineon Technologies. CoolMOSTM C6 series
combines the experience of the leading SJ MOSFET supplier with
high class innovation. The offered devices provide all benefits of a
fast switching SJ MOSFET while not sacrificing ease of use.
Extremely low switching and conduction losses make switching
applications even more efficient, more compact, lighter, and cooler.
Features
