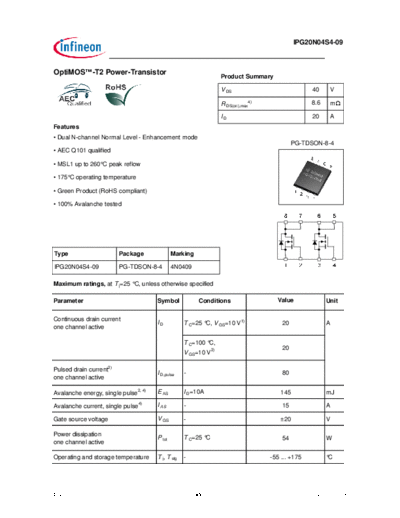

>> Download ipg20n04s4-09_ds_1_0 documenatation <<

Text preview - extract from the document

                                                                                            IPG20N04S4-09



OptiMOSTM-T2 Power-Transistor                                    Product Summary

                                                                 V DS                            40     V

                                                                 R DS(on),max4)                  8.6    mW

                                                                 ID                              20     A
Features
