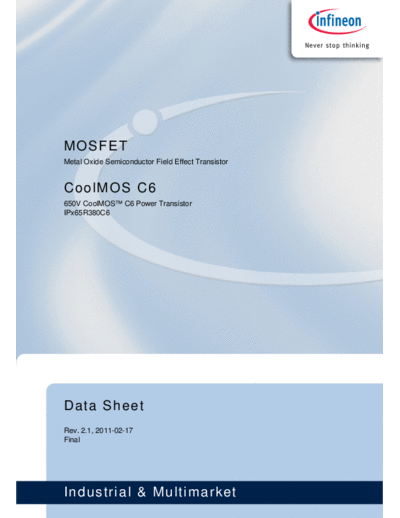

Image preview - the first page of the document



>> Download ipi65r380c6_2_1 documenatation <<

Text preview - extract from the document

MOSFET
Metal Oxide Semiconductor Field Effect Transistor


CoolMOS C6
650V CoolMOSTM C6 Power Transistor
IPx65R380C6




Data Sheet
Rev. 2.1, 2011-02-17
Final




Industrial & Multimarket
650V CoolMOSTM C6 Power Transistor                                            IPD65R380C6, IPI65R380C6
                                                                             IPB65R380C6, IPP65R380C6
                                                                                          IPA65R380C6
1             Description
CoolMOSTM is a revolutionary technology for high voltage power
MOSFETs, designed according to the superjunction (SJ) principle
and pioneered by Infineon Technologies. CoolMOSTM C6 series combines
the experience of the leading SJ MOSFET supplier with high class
innovation. The resulting devices provide all benefits of a fast switching
SJ MOSFET while not sacrificing ease of use. Extremely low switching
and conduction losses make switching applications even more efficient,
more compact, lighter, and cooler.

Features
