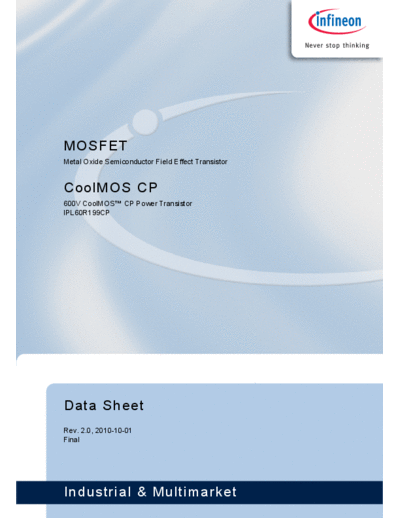

Image preview - the first page of the document



>> Download ipl60r199cp_2_0 documenatation <<

Text preview - extract from the document

MOSFET
Metal Oxide Semiconductor Field Effect Transistor


CoolMOS CP
600V CoolMOSTM CP Power Transistor
IPL60R199CP




Data Sheet
Rev. 2.0, 2010-10-01
Final




Industrial & Multimarket
600V CoolMOSTM CP Power Transistor                                                                 IPL60R199CP



1             Description
The CoolMOSTM CP series offers devices which provide all benefits of a fast
switching SJ MOSFET while not sacrificing ease of use. Extremely low
switching and conduction losses make switching applications even more
efficient, more compact, lighter, and cooler.



ThinPAK
                                                                                                        bottom view
ThinPAK is a a new leadless SMD package for HV MOSFETs. The new
package has a very small footprint of only 64mm
