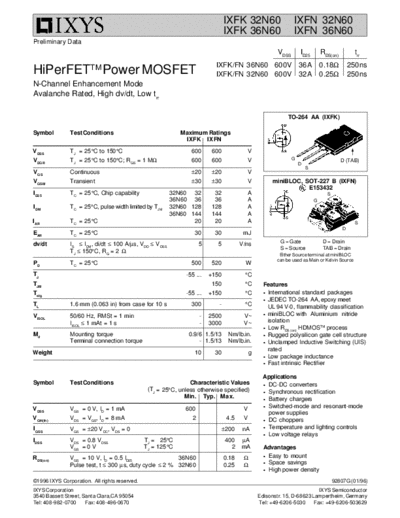

>> Download ixfk32n60_ixfn32n60_ixfk36n60_ixfn36n60 documenatation <<Text preview - extract from the document IXFK 32N60 IXFN 32N60
IXFK 36N60 IXFN 36N60
Preliminary Data
VDSS ID25 RDS(on) t rr
IXFK/FN 36N60 600V 36A 0.18 250ns
HiPerFETTM Power MOSFET IXFK/FN 32N60 600V 32A 0.25 250ns
N-Channel Enhancement Mode
Avalanche Rated, High dv/dt, Low trr
TO-264 AA (IXFK)
Symbol Test Conditions Maximum Ratings
IXFK IXFN
VDSS TJ = 25
