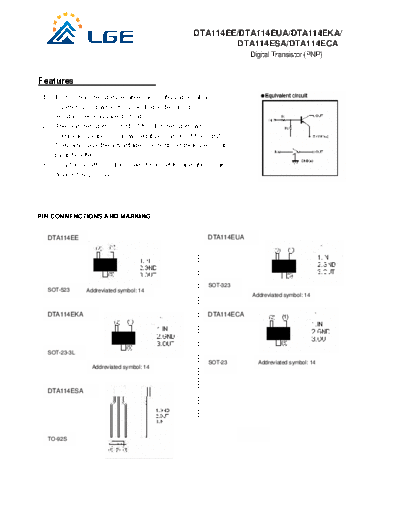

Image preview - the first page of the document



>> Download dta114 documenatation <<

Text preview - extract from the document

                                                         DTA114EE/DTA114EUA/DTA114EKA/
                                                                 DTA114ESA/DTA114ECA
                                                                          Digital Transistor (PNP)


Features
 1.     Built-in bias resistors enable the configuration of an
        inverter circuit without connecting external input
        resistors(see equivalent circuit).
 2.     The bias resistors consist of thin-film resistors with
        complete isolation to allow negative biasing of the input.
        They also have the advantage of almost completely eliminating
        parasitic effects.
 3.     Only the on/off conditions need to be set for operation, making
        device design easy.




PIN CONNENCTIONS AND MARKING


      DTA114EE                                                DTA114EUA




                                                              SOT-323
      SOT-523      Addreviated symbol: 14
                                                                          Addreviated symbol: 14


      DTA114EKA                                               DTA114ECA




      SOT-23-3L
                                                              SOT-23        Addreviated symbol: 14
                     Addreviated symbol: 14



      DTA114ESA




      TO-92S
                                                          DTA114EE/DTA114EUA/DTA114EKA/
                                                                  DTA114ESA/DTA114ECA
                                                                                 Digital Transistor (PNP)
Absolute maximum ratings(Ta=25)
                                                               Limits (DTA114E)
      Parameter            Symbol                                                                                  Unit
                                              E           UA             CA             KA             SA
    Supply voltage            VCC                                        -50                                        V
     Input voltage             VIN                                     -40~10                                       V
                                  IO                                     -50
    Output current                                                                                                 mA
                            IC(MAX)                                     -100
  Power dissipation               Pd          150                       200                           300          mW
 Junction temperature             Tj                                    150
 Storage temperature          Tstg                                     -55~150
Electrical characteristics (Ta=25)
     Parameter            Symbol       Min.         Typ        Max.            Unit              Conditions
                           VI(off)                             -0.5                          VCC=-5V ,IO=-100
