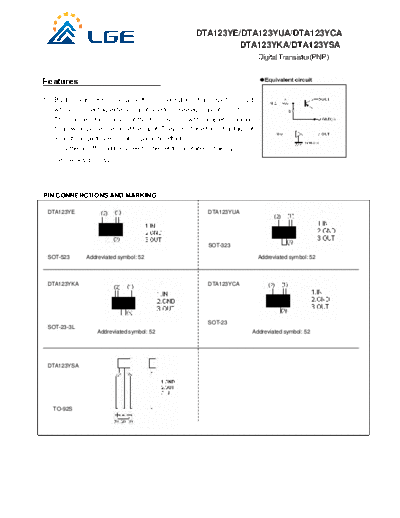

Image preview - the first page of the document



>> Download dta123y documenatation <<

Text preview - extract from the document

                                                       DTA123YE/DTA123YUA/DTA123YCA
                                                               DTA123YKA/DTA123YSA
                                                                               Digital Transistor(PNP)


Features

1) Built-in bias resistors enable the configuration of an inverter circuit
   without connecting external input resistors (see equivalent circuit).
2) The bias resistors consist of thin-film resistors with complete isolation
   to allow negative biasing of the input. They also have the advantage of
   almost completely eliminating parasitic effects.
3) Only the on/off conditions need to be set for operation, making
    device design easy.




PIN CONNENCTIONS AND MARKING

 DTA123YE                                                  DTC114EUA
                                                           DTA123YUA




                                                           SOT-323

 SOT-523       Addreviated symbol: 52                                          Addreviated symbol: 52



 DTA123YKA                                                 DTA123YCA




                                                           SOT-23
 SOT-23-3L
                   Addreviated symbol: 52                                  Addreviated symbol: 52




 DTA123YSA




   TO-92S
                                                       DTA123YE/DTA123YUA/DTA123YCA
                                                               DTA123YKA/DTA123YSA
                                                                                   Digital Transistor(PNP)
Absolute maximum ratings(Ta=25)
                                                            Limits (DTA123Y )
     Parameter         Symbol                                                                                      Unit
                                            E          UA             KA                CA             SA
   Supply voltage         VCC                                         -50                                           V
    Input voltage         VIN                                        -12~5                                          V
                              IO                                     -100
   Output current                                                                                                  mA
                        IC(MAX)                                      -100
 Power dissipation        Pd               150                       200                               300         mW
      Junction
                              Tj                                     150
    temperature
Storage temperature      Tstg                                       -55~150
Electrical characteristics (Ta=25)
     Parameter         Symbol        Min.        Typ         Max.           Unit                 Conditions
                       VI(off)                               -0.3                            VCC=-5V ,IO=-100
