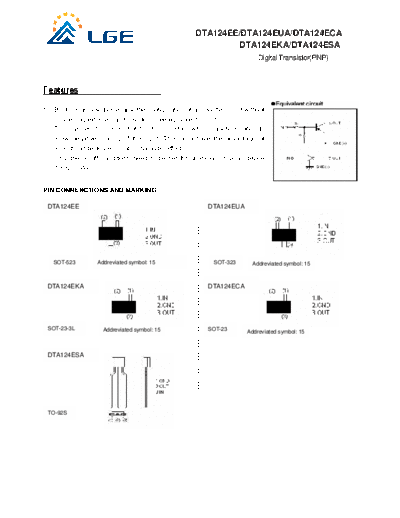

Image preview - the first page of the document



>> Download dta124e documenatation <<

Text preview - extract from the document

                                                        DTA124EE/DTA124EUA/DTA124ECA
                                                                DTA124EKA/DTA124ESA
                                                                               Digital Transistor(PNP)



Features

1) Built-in bias resistors enable the configuration of an inverter circuit without
   connecting external input resistors (see equivalent circuit).
2) The bias resistors consist of thin-film resistors with complete isolation to
   allow negative biasing of the input. They also have the advantage of
   almost completely eliminating parasitic effects.
3) Only the on/off conditions need to be set for operation, making device
   design easy.


PIN CONNENCTIONS AND MARKING

 DTA124EE                                                    DTA124EUA




   SOT-523          Addreviated symbol: 15                     SOT-323       Addreviated symbol: 15


                                                             DTA114ECA
 DTA124EKA                                                   DTA124ECA




 SOT-23-3L            Addreviated symbol: 15                 SOT-23        Addreviated symbol: 15



 DTA124ESA




 TO-92S
                                                           DTA124EE/DTA124EUA/DTA124ECA
                                                                   DTA124EKA/DTA124ESA
Absolute maximum ratings(Ta=25)                                                 Digital Transistor(PNP)
                                                               Limits (DTA124E       )
       Parameter          Symbol                                                                                Unit
                                               E             UA        KA           CA              SA
    Supply voltage               VCC                                    -50                                          V
     Input voltage               VIN                                  -40~10                                         V
                                  IO                                    -30
    Output current                                                                                               mA
                              IC(MAX)                                  -100
  Power dissipation              Pd            150                     200                          300          mW
Junction temperature              Tj                                   150
 Storage temperature             Tstg                                 -55~150
Electrical characteristics (Ta=25)
     Parameter          Symbol          Min.         Typ      Max.       Unit                  Conditions
                       VI(off)                                -0.5                         VCC=-5V ,IO=-100
