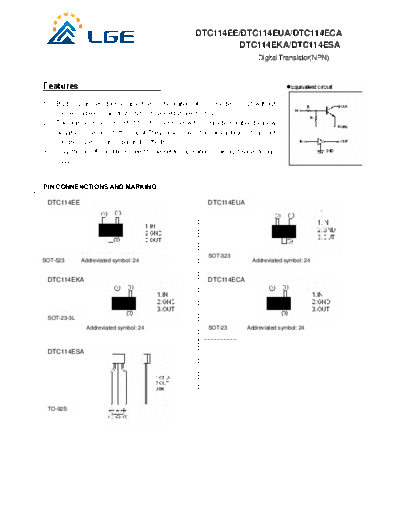

Image preview - the first page of the document



>> Download dtc114e documenatation <<

Text preview - extract from the document

                                                         DTC114EE/DTC114EUA/DTC114ECA
                                                                 DTC114EKA/DTC114ESA
                                                                                Digital Transistor(NPN)


Features
1.   Built-in bias resistors enable the configuration of an inverter circuit without
     connecting external input resistors(see equivalent circuit).
2.   The bias resistors consist of thin-film resistors with complete isolation to allow
     negative biasing of the input.They also have the advantage of almost
     completely eliminating parasitic effects.
3.   Only the on/off conditions need to be set for operation, making device design
     easy.


PIN CONNENCTIONS AND MARKING

 DTC114EE                                                    DTC114EUA




              Addreviated symbol: 24                         SOT-323
SOT-523       Addreviated symbol: 24                                          Addreviated symbol: 24


 DTC114EKA                                                   DTC114ECA
                                                             DTA114ECA




   SOT-23
 SOT-23-3L
                Addreviated symbol: 24                       SOT-23         Addreviated symbol: 24



 DTC114ESA




 TO-92S
                                                          DTC114EE/DTC114EUA/DTC114ECA
                                                                  DTC114EKA/DTC114ESA
Absolute maximum ratings(Ta=25)
                                                                                    Digital Transistor(NPN)
                                                               Limits (DTC114E)
      Parameter            Symbol                                                                                 Unit
                                              E           UA            CA               KA            SA
    Supply voltage            VCC                                       50                                         V
     Input voltage             VIN                                    -10~40                                       V
                                  IO                                    50
    Output current                                                                                                mA
                            IC(MAX)                                    100
  Power dissipation               Pd          150                      200                            300         mW
 Junction temperature             Tj                                   150
 Storage temperature          Tstg                                    -55~150
Electrical characteristics (Ta=25)
     Parameter            Symbol       Min.         Typ        Max.          Unit                Conditions
                           VI(off)                             0.5                            VCC=5V ,IO=100
