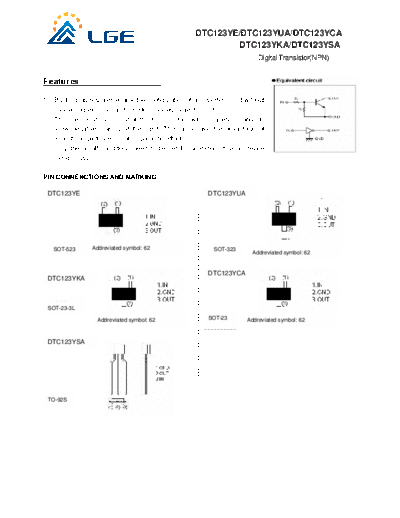

Image preview - the first page of the document



>> Download dtc123y documenatation <<

Text preview - extract from the document

                                                        DTC123YE/DTC123YUA/DTC123YCA
                                                                DTC123YKA/DTC123YSA
                                                                               Digital Transistor(NPN)


Features

1) Built-in bias resistors enable the configuration of an inverter circuit without
   connecting external input resistors(see equivalent circuit).
2) The bias resistors consist of thin-film resistors with complete isolation to
   allow negative biasing of the input. They also have the advantage of
   almost completely eliminating parasitic effects.
3) Only the on/off conditions need to be set for operation, making device
   design easy.

PIN CONNENCTIONS AND MARKING

 DTC123YE                                                    DTC123YUA




   SOT-523        Addreviated symbol: 62                       SOT-323
                                                                             Addreviated symbol: 62


                                                             DTA114ECA
                                                             DTC123YCA
 DTC123YKA


   SOT-23
 SOT-23-3L

                    Addreviated symbol: 62                   SOT-23        Addreviated symbol: 62



 DTC123YSA




 TO-92S
                                                             DTC123YE/DTC123YUA/DTC123YCA
                                                                     DTC123YKA/DTC123YSA
 Absolute maximum ratings(Ta=25)                                                       Digital Transistor(NPN)
                                                               Limits (DTC123Y             )
        Parameter           Symbol                                                                                     Unit
                                                 E           UA            KA                  CA              SA
 Supply voltage                    VCC                                     50                                           V
 Input voltage                     VIN                                    -5~12                                         V
                                   IO                                     100
 Output current                                                                                                        mA
                                IC(MAX)                                   100
 Power dissipation                 Pd            150                      200                                  300     mW
 Junction temperature              Tj                                     150
 Storage temperature             Tstg                                    -55~150
 Electrical characteristics (Ta=25)
     Parameter          Symbol            Min.         Typ        Max.          Unit                   Conditions
                         VI(off)                                  0.3                               VCC=5V, IO=100
