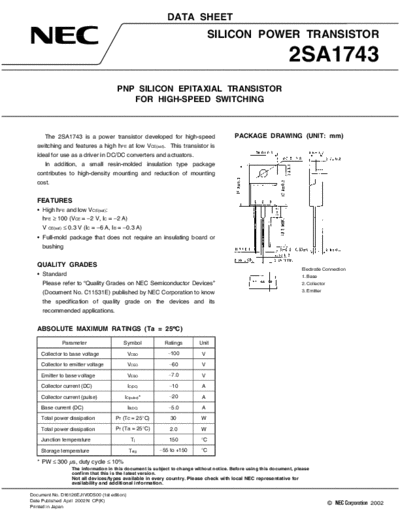

Image preview - the first page of the document
>> Download 2sa1743 documenatation <<Text preview - extract from the document DATA SHEET
SILICON POWER TRANSISTOR
2SA1743
PNP SILICON EPITAXIAL TRANSISTOR
FOR HIGH-SPEED SWITCHING
The 2SA1743 is a power transistor developed for high-speed PACKAGE DRAWING (UNIT: mm)
switching and features a high hFE at low VCE(sat). This transistor is
ideal for use as a driver in DC/DC converters and actuators.
In addition, a small resin-molded insulation type package
contributes to high-density mounting and reduction of mounting
cost.
FEATURES
