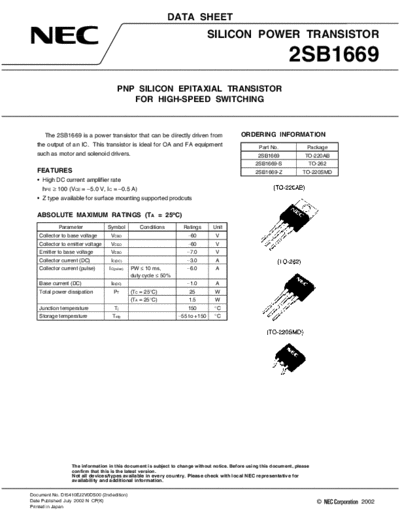

                                                              DATA SHEET
                                                                              SILICON POWER TRANSISTOR

                                                                                                                2SB1669
                                      PNP SILICON EPITAXIAL TRANSISTOR
                                         FOR HIGH-SPEED SWITCHING



      The 2SB1669 is a power transistor that can be directly driven from                   ORDERING INFORMATION
  the output of an IC. This transistor is ideal for OA and FA equipment                            Part No.             Package
  such as motor and solenoid drivers.                                                             2SB1669              TO-220AB
                                                                                                 2SB1669-S              TO-262
  FEATURES                                                                                       2SB1669-Z            TO-220SMD
