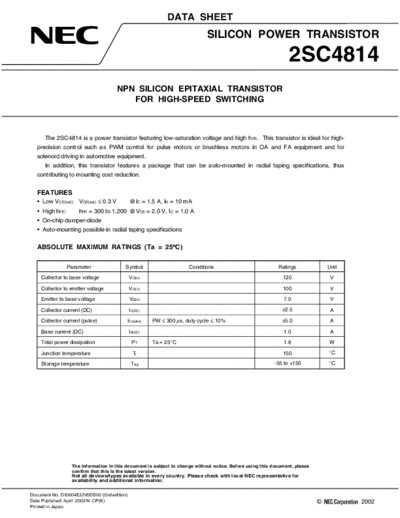

Image preview - the first page of the document
>> Download 2sc4814 documenatation <<Text preview - extract from the document DATA SHEET
SILICON POWER TRANSISTOR
2SC4814
NPN SILICON EPITAXIAL TRANSISTOR
FOR HIGH-SPEED SWITCHING
The 2SC4814 is a power transistor featuring low-saturation voltage and high hFE. This transistor is ideal for high-
precision control such as PWM control for pulse motors or brushless motors in OA and FA equipment and for
solenoid driving in automotive equipment.
In addition, this transistor features a package that can be auto-mounted in radial taping specifications, thus
contributing to mounting cost reduction.
FEATURES
