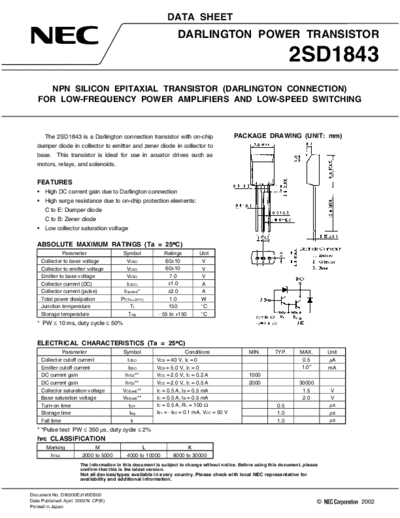

Image preview - the first page of the document
>> Download 2sd1843 documenatation <<Text preview - extract from the document DATA SHEET
DARLINGTON POWER TRANSISTOR
2SD1843
NPN SILICON EPITAXIAL TRANSISTOR (DARLINGTON CONNECTION)
FOR LOW-FREQUENCY POWER AMPLIFIERS AND LOW-SPEED SWITCHING
The 2SD1843 is a Darlington connection transistor with on-chip PACKAGE DRAWING (UNIT: mm)
dumper diode in collector to emitter and zener diode in collector to
base. This transistor is ideal for use in acuator drives such as
motors, relays, and solenoids.
FEATURES
