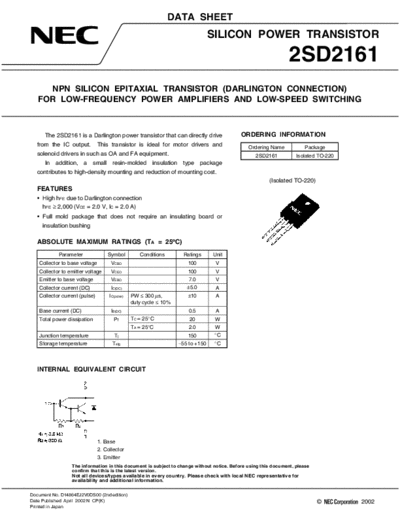

Image preview - the first page of the document
>> Download 2sd2161 documenatation <<Text preview - extract from the document DATA SHEET
SILICON POWER TRANSISTOR
2SD2161
NPN SILICON EPITAXIAL TRANSISTOR (DARLINGTON CONNECTION)
FOR LOW-FREQUENCY POWER AMPLIFIERS AND LOW-SPEED SWITCHING
The 2SD2161 is a Darlington power transistor that can directly drive ORDERING INFORMATION
from the IC output. This transistor is ideal for motor drivers and Ordering Name Package
solenoid drivers in such as OA and FA equipment. 2SD2161 Isolated TO-220
In addition, a small resin-molded insulation type package
contributes to high-density mounting and reduction of mounting cost.
(Isolated TO-220)
FEATURES
