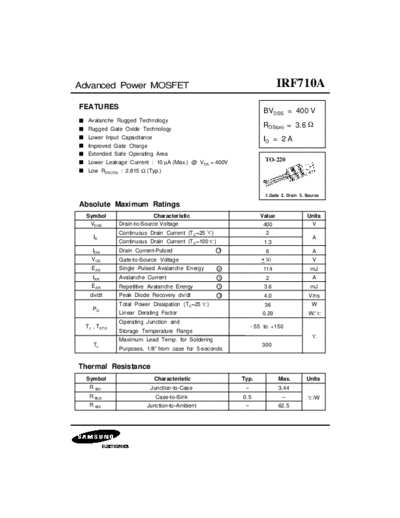

Image preview - the first page of the document
>> Download irf710a documenatation <<Text preview - extract from the documentAdvanced Power MOSFET IRF710A
FEATURES
BVDSS = 400 V
Avalanche Rugged Technology
Rugged Gate Oxide Technology
RDS(on) = 3.6
Lower Input Capacitance ID = 2 A
Improved Gate Charge
Extended Safe Operating Area
Lower Leakage Current : 10
