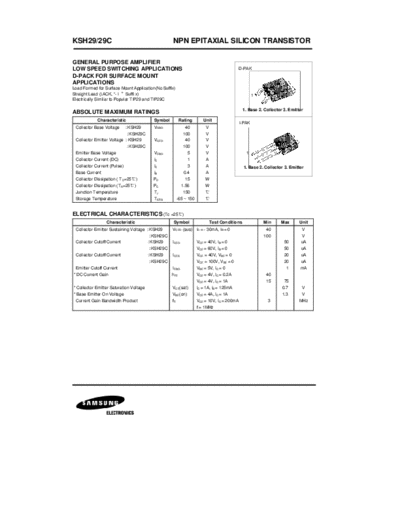

Image preview - the first page of the document
ksh29


>> Download ksh29 documenatation <<

Text preview - extract from the document
KSH29/29C                                            NPN EPITAXIAL SILICON TRANSISTOR

GENERAL PURPOSE AMPLIFIER
LOW SPEED SWITCHING APPLICATIONS                                                            D-PAK
D-PACK FOR SURFACE MOUNT
APPLICATIONS
Load Formed for Surface Mount Application(No Suffix)
Straight Lead (I.ACK, "- I
  Suffi x)                                                                 1
Electrically Similar to Popular TIP29 and TIP29C

                                                                                                 1. Base 2. Collector 3. Emitter
ABSOLUTE MAXIMUM RATINGS
            Characteristic                  Symbol         Rating        Unit
                                                                                              I-PAK
 Collector Base Voltage       : KSH29      VCBO               40           V
                              : KSH29C                       100           V
 Collector Emitter Voltage : KSH29         VCEO               40           V
                              : KSH29C                       100           V
 Emitter Base Voltage                      VEBO                5           V                      1
 Collector Current (DC)                    IC                  1           A
 Collector Current (Pulse)                 IC                  3           A                     1. Base 2. Collector 3. Emitter
 Base Current                              IB                0.4           A
 Collector Dissipation ( T C=25 &)         PC                 15          W
 Collector Dissipation (T A=25  &)         PC               1.56          W
 Junction Temperature                      TJ                150          &
 Storage Temperature                       T STG          -65 ~ 150       &
ELECTRICAL CHARACTERISTICS (Tc =25&)
                 Characteristic                      Symbol                    Test Conditions             Min      Max       Unit
 Collector Emitter Sustaining Voltage : KSH29        VCEO (sus) IC = - 30mA, IB = 0                          40                V
                                         : KSH29C                                                          100                 V
 Collector Cutoff Current                : KSH29     ICEO             VCE = 40V, IB = 0                               50       uA
                                         : KSH29C                     VCE = 60V, IB = 0                               50       uA
 Collector Cutoff Current                : KSH29     ICES             VCE = 40V, VBE = 0                              20       uA
                                         : KSH29C                     VCE = 100V, VBE = 0                             20       uA
 Emitter Cutoff Current                              IEBO             VBE = 5V, IC = 0                                 1      mA
* DC Current Gain                                    hFE              VCE = 4V, IC = 0.2A                    40
                                                                      VCE = 4V, IC = 1A                      15       75
* Collector Emitter Saturation Voltage               VCE(sat)         IC = 1A, IB = 125mA                            0.7       V
* Base Emitter On Voltage                            VBE(on)          VCE = 4A, IC = 1A                              1.3       V
 Current Gain Bandwidth Product                      fT               VCE = 10V, IC = 200mA                   3               MHz
                                                                      f = 1MHz
