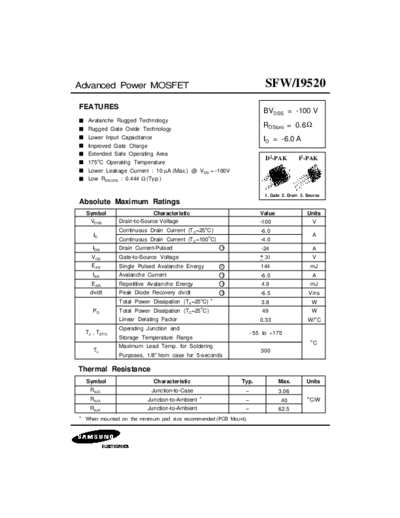

Image preview - the first page of the document
>> Download sfi9520 documenatation <<Text preview - extract from the documentAdvanced Power MOSFET SFW/I9520
FEATURES
BVDSS = -100 V
Avalanche Rugged Technology
Rugged Gate Oxide Technology
RDS(on) = 0.6
Lower Input Capacitance ID = -6.0 A
Improved Gate Charge
Extended Safe Operating Area
o D2-PAK I2-PAK
175 C Operating Temperature
Lower Leakage Current : 10
