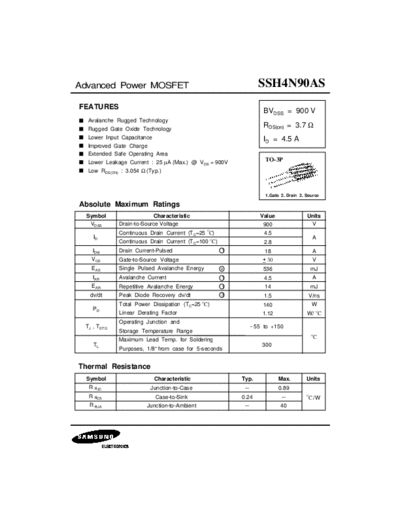

>> Download ssh4n90as documenatation <<Text preview - extract from the documentAdvanced Power MOSFET SSH4N90AS
FEATURES
BVDSS = 900 V
Avalanche Rugged Technology
Rugged Gate Oxide Technology
RDS(on) = 3.7
Lower Input Capacitance ID = 4.5 A
Improved Gate Charge
Extended Safe Operating Area
Lower Leakage Current : 25
