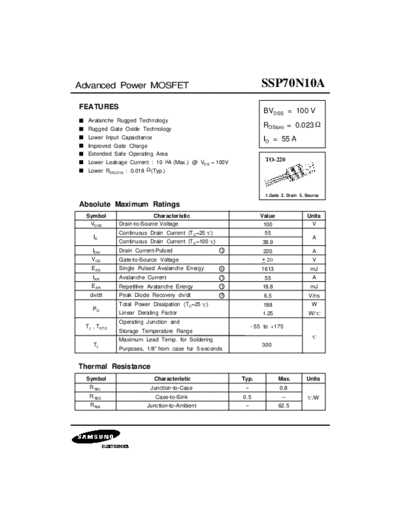

Image preview - the first page of the document
>> Download ssp70n10a documenatation <<Text preview - extract from the documentAdvanced Power MOSFET SSP70N10A
FEATURES
BVDSS = 100 V
Avalanche Rugged Technology
Rugged Gate Oxide Technology
RDS(on) = 0.023
Lower Input Capacitance ID = 55 A
Improved Gate Charge
Extended Safe Operating Area
Lower Leakage Current : 10
