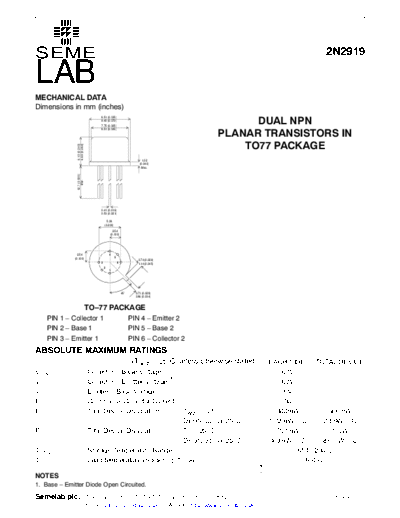

>> Download 2n2919 documenatation <<Text preview - extract from the documentSEME 2N2919
LAB
MECHANICAL DATA
Dimensions in mm (inches)
8.51 (0.335)
9.40 (0.370)
7.75 (0.305)
DUAL NPN
8.51 (0.335)
PLANAR TRANSISTORS IN
TO77 PACKAGE
6.10 (0.240)
6.60 (0.260)
1.02
(0.040)
Max.
12.7 (0.500)
Min.
0.41 (0.016)
0.53 (0.021)
5.08
(0.200)
2.54
(0.100)
2.54 4
(0.100) 5
0.74 (0.029)
3 6 1.14 (0.045)
2
1
45
