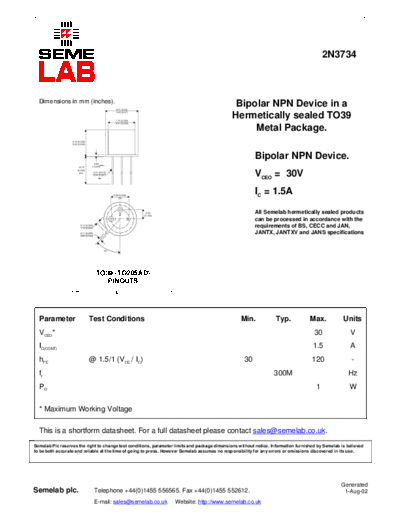

>> Download 2n3734 documenatation <<Text preview - extract from the document 2N3734
Dimensions in mm (inches).
8.51 (0.34)
Bipolar NPN Device in a
Hermetically sealed TO39
9.40 (0.37)
7.75 (0.305)
8.51 (0.335)
Metal Package.
6.10 (0.240)
6.60 (0.260)
Bipolar NPN Device.
0.89
max.
12.70 (0.035)
(0.500)
min. 0.41 (0.016)
0.53 (0.021)
dia.
VCEO = 30V
5.08 (0.200)
typ.
IC = 1.5A
2
2.54
(0.100)
All Semelab hermetically sealed products
1 3 can be processed in accordance with the
0.74 (0.029)
1.14 (0.045)
requirements of BS, CECC and JAN,
0.71 (0.028) JANTX, JANTXV and JANS specifications
0.86 (0.034)
45
