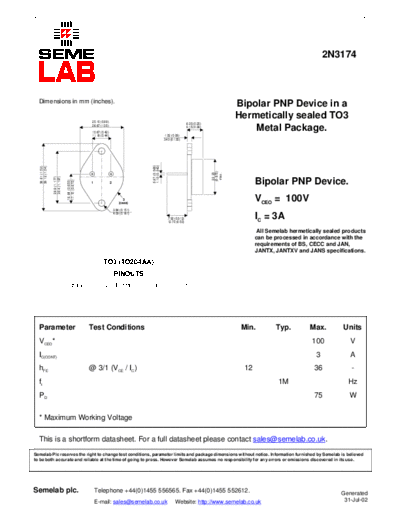

                                                                                                                                                                               2N3174



  Dimensions in mm (inches).
                                                                                                                                               Bipolar PNP Device in a
                                                    25.15 (0.99)
                                                                                                                                               Hermetically sealed TO3
                                                                                                                       6.35 (0.25)
                                                    26.67 (1.05)
                                                    10.67 (0.42)
                                                                                                                       9.15 (0.36)
                                                                                                                                                   Metal Package.
                                                    11.18 (0.44)                                       1.52 (0.06)
                                                                                                      3.43 (0.135)
                                                                                       0.97 (0.060)
                                                                                       1.10 (0.043)
   38.61 (1.52)
   39.12 (1.54)




                                                                                                                                     (0.875)
                                                                                                                                      22.23

                                                                                                                                      max.
                  29.9 (1.177)
                  30.4 (1.197)




                                                                                                                                                     Bipolar PNP Device.
                                   16.64 (0.655)
                                   17.15 (0.675)




                                                   1               2



                                                                              3
                                                                           (case)
                                                                                                                                                     VCEO = 100V
                                                                       3.84 (0.151)
                                                                       4.09 (0.161)
                                                                                                        7.92 (0.312)
                                                                                                        12.70 (0.50)
                                                                                                                                                     IC = 3A
                                                                                                                                                      All Semelab hermetically sealed products
                                                                                                                                                     can be processed in accordance with the
                                                                                                                                                     requirements of BS, CECC and JAN,
                                                                                                                                                     JANTX, JANTXV and JANS specifications.

                                                            TO3 (TO204AA)
                                                                       PINOUTS
