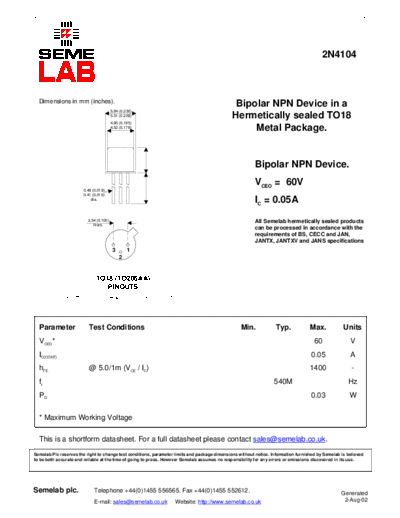

Image preview - the first page of the document
>> Download 2n4104 documenatation <<Text preview - extract from the document 2N4104
Dimensions in mm (inches).
Bipolar NPN Device in a
5.84 (0.230)
5.31 (0.209) Hermetically sealed TO18
4.95 (0.195)
4.52 (0.178) Metal Package.
Bipolar NPN Device.
VCEO = 60V
0.48 (0.019)
0.41 (0.016)
dia. IC = 0.05A
2.54 (0.100) All Semelab hermetically sealed products
Nom.
can be processed in accordance with the
requirements of BS, CECC and JAN,
JANTX, JANTXV and JANS specifications
3 1
2
TO18 (TO206AA)
PINOUTS
1
