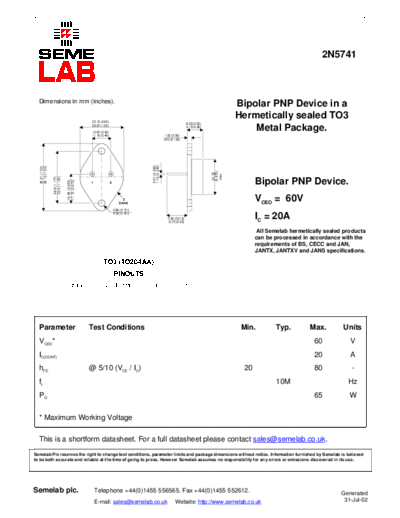

2N5741
Dimensions in mm (inches).
Bipolar PNP Device in a
25.15 (0.99)
Hermetically sealed TO3
6.35 (0.25)
26.67 (1.05)
10.67 (0.42)
9.15 (0.36)
Metal Package.
11.18 (0.44) 1.52 (0.06)
3.43 (0.135)
0.97 (0.060)
1.10 (0.043)
38.61 (1.52)
39.12 (1.54)
(0.875)
22.23
max.
29.9 (1.177)
30.4 (1.197)
Bipolar PNP Device.
16.64 (0.655)
17.15 (0.675)
1 2
3
(case)
VCEO = 60V
3.84 (0.151)
4.09 (0.161)
7.92 (0.312)
12.70 (0.50)
IC = 20A
All Semelab hermetically sealed products
can be processed in accordance with the
requirements of BS, CECC and JAN,
JANTX, JANTXV and JANS specifications.
TO3 (TO204AA)
PINOUTS
