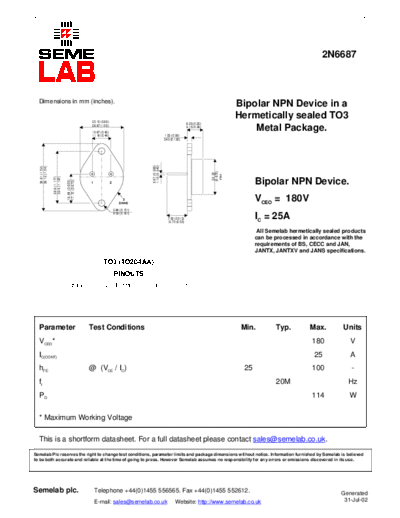

                                                                                                                                                                             2N6687



  Dimensions in mm (inches).
                                                                                                                                               Bipolar NPN Device in a
                                                    25.15 (0.99)
                                                                                                                                               Hermetically sealed TO3
                                                                                                                       6.35 (0.25)
                                                    26.67 (1.05)
                                                    10.67 (0.42)
                                                                                                                       9.15 (0.36)
                                                                                                                                                   Metal Package.
                                                    11.18 (0.44)                                       1.52 (0.06)
                                                                                                      3.43 (0.135)
                                                                                       0.97 (0.060)
                                                                                       1.10 (0.043)
   38.61 (1.52)
   39.12 (1.54)




                                                                                                                                     (0.875)
                                                                                                                                      22.23

                                                                                                                                      max.
                  29.9 (1.177)
                  30.4 (1.197)




                                                                                                                                                     Bipolar NPN Device.
                                   16.64 (0.655)
                                   17.15 (0.675)




                                                   1               2



                                                                              3
                                                                           (case)
                                                                                                                                                     VCEO = 180V
                                                                       3.84 (0.151)
                                                                       4.09 (0.161)
                                                                                                        7.92 (0.312)
                                                                                                        12.70 (0.50)
                                                                                                                                                     IC = 25A
                                                                                                                                                      All Semelab hermetically sealed products
                                                                                                                                                     can be processed in accordance with the
                                                                                                                                                     requirements of BS, CECC and JAN,
                                                                                                                                                     JANTX, JANTXV and JANS specifications.

                                                            TO3 (TO204AA)
                                                                       PINOUTS
