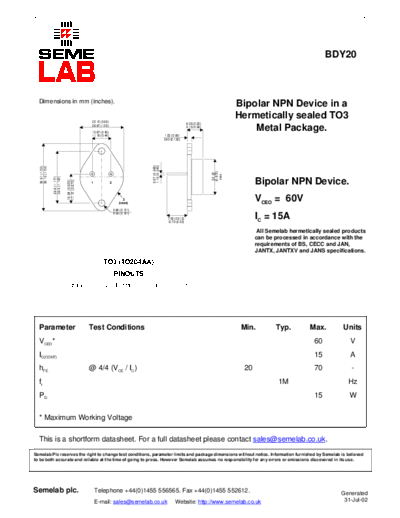

Image preview - the first page of the document
>> Download bdy20 documenatation <<Text preview - extract from the document BDY20
Dimensions in mm (inches).
Bipolar NPN Device in a
25.15 (0.99)
Hermetically sealed TO3
6.35 (0.25)
26.67 (1.05)
10.67 (0.42)
9.15 (0.36)
Metal Package.
11.18 (0.44) 1.52 (0.06)
3.43 (0.135)
0.97 (0.060)
1.10 (0.043)
38.61 (1.52)
39.12 (1.54)
(0.875)
22.23
max.
29.9 (1.177)
30.4 (1.197)
Bipolar NPN Device.
16.64 (0.655)
17.15 (0.675)
1 2
3
(case)
VCEO = 60V
3.84 (0.151)
4.09 (0.161)
7.92 (0.312)
12.70 (0.50)
IC = 15A
All Semelab hermetically sealed products
can be processed in accordance with the
requirements of BS, CECC and JAN,
JANTX, JANTXV and JANS specifications.
TO3 (TO204AA)
PINOUTS
1
