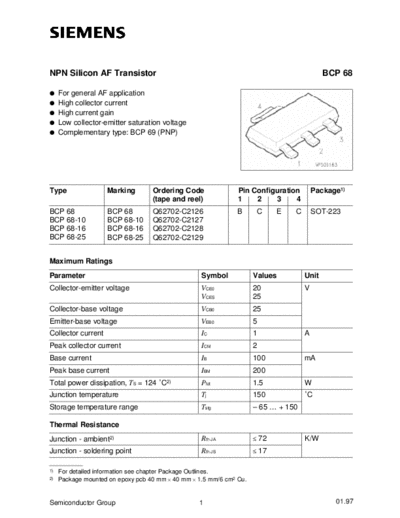

Image preview - the first page of the document
>> Download bcp68 documenatation <<Text preview - extract from the documentNPN Silicon AF Transistor BCP 68
q For general AF application
q High collector current
q High current gain
q Low collector-emitter saturation voltage
q Complementary type: BCP 69 (PNP)
Type Marking Ordering Code Pin Configuration Package1)
(tape and reel) 1 2 3 4
BCP 68 BCP 68 Q62702-C2126 B C E C SOT-223
BCP 68-10 BCP 68-10 Q62702-C2127
BCP 68-16 BCP 68-16 Q62702-C2128
BCP 68-25 BCP 68-25 Q62702-C2129
Maximum Ratings
Parameter Symbol Values Unit
Collector-emitter voltage VCE0 20 V
VCES 25
Collector-base voltage VCB0 25
Emitter-base voltage VEB0 5
Collector current IC 1 A
Peak collector current ICM 2
Base current IB 100 mA
Peak base current IBM 200
Total power dissipation, TS = 124
