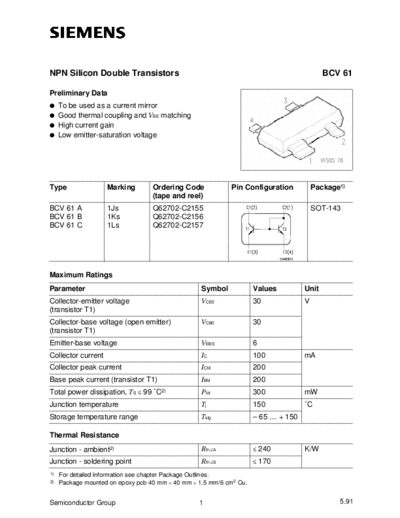

>> Download bcv61 documenatation <<Text preview - extract from the documentNPN Silicon Double Transistors BCV 61
Preliminary Data
q To be used as a current mirror
q Good thermal coupling and VBE matching
q High current gain
q Low emitter-saturation voltage
Type Marking Ordering Code Pin Configuration Package1)
(tape and reel)
BCV 61 A 1Js Q62702-C2155 SOT-143
BCV 61 B 1Ks Q62702-C2156
BCV 61 C 1Ls Q62702-C2157
Maximum Ratings
Parameter Symbol Values Unit
Collector-emitter voltage VCE0 30 V
(transistor T1)
Collector-base voltage (open emitter) VCB0 30
(transistor T1)
Emitter-base voltage VEBS 6
Collector current IC 100 mA
Collector peak current ICM 200
Base peak current (transistor T1) IBM 200
Total power dissipation, TS 99
