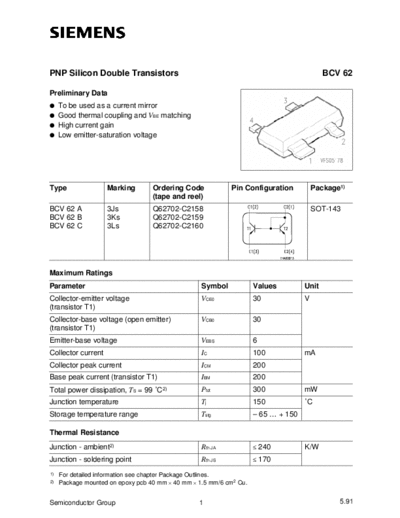

Image preview - the first page of the document
>> Download bcv62 documenatation <<Text preview - extract from the documentPNP Silicon Double Transistors BCV 62
Preliminary Data
q To be used as a current mirror
q Good thermal coupling and VBE matching
q High current gain
q Low emitter-saturation voltage
Type Marking Ordering Code Pin Configuration Package1)
(tape and reel)
BCV 62 A 3Js Q62702-C2158 SOT-143
BCV 62 B 3Ks Q62702-C2159
BCV 62 C 3Ls Q62702-C2160
Maximum Ratings
Parameter Symbol Values Unit
Collector-emitter voltage VCE0 30 V
(transistor T1)
Collector-base voltage (open emitter) VCB0 30
(transistor T1)
Emitter-base voltage VEBS 6
Collector current IC 100 mA
Collector peak current ICM 200
Base peak current (transistor T1) IBM 200
Total power dissipation, TS = 99
