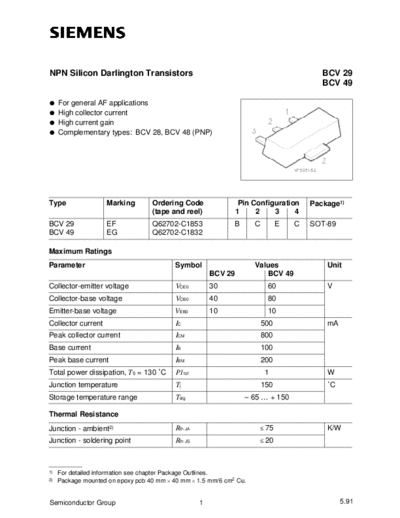

Image preview - the first page of the document
>> Download bcv29_bcv49 documenatation <<Text preview - extract from the documentNPN Silicon Darlington Transistors BCV 29
BCV 49
q For general AF applications
q High collector current
q High current gain
q Complementary types: BCV 28, BCV 48 (PNP)
Type Marking Ordering Code Pin Configuration Package1)
(tape and reel) 1 2 3 4
BCV 29 EF Q62702-C1853 B C E C SOT-89
BCV 49 EG Q62702-C1832
Maximum Ratings
Parameter Symbol Values Unit
BCV 29 BCV 49
Collector-emitter voltage VCE0 30 60 V
Collector-base voltage VCB0 40 80
Emitter-base voltage VEB0 10 10
Collector current IC 500 mA
Peak collector current ICM 800
Base current IB 100
Peak base current IBM 200
Total power dissipation, TS = 130
