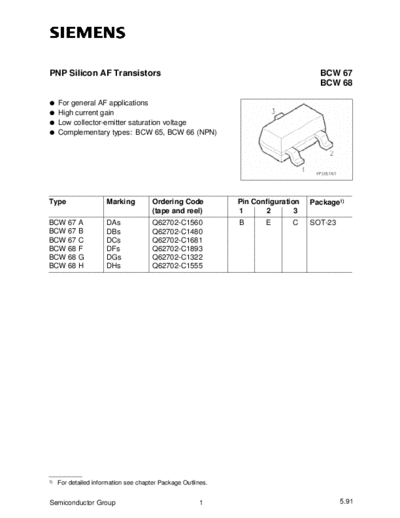

Image preview - the first page of the document
>> Download bcw67_bcw68 documenatation <<Text preview - extract from the documentPNP Silicon AF Transistors BCW 67
BCW 68
q For general AF applications
q High current gain
q Low collector-emitter saturation voltage
q Complementary types: BCW 65, BCW 66 (NPN)
Type Marking Ordering Code Pin Configuration Package1)
(tape and reel) 1 2 3
BCW 67 A DAs Q62702-C1560 B E C SOT-23
BCW 67 B DBs Q62702-C1480
BCW 67 C DCs Q62702-C1681
BCW 68 F DFs Q62702-C1893
BCW 68 G DGs Q62702-C1322
BCW 68 H DHs Q62702-C1555
1) For detailed information see chapter Package Outlines.
Semiconductor Group 1 5.91
BCW 67
BCW 68
Maximum Ratings
Parameter Symbol Values Unit
BCW 67 BCW 68
Collector-emitter voltage VCE0 32 45 V
Collector-base voltage VCB0 45 60
Emitter-base voltage VEB0 5 5
Collector current IC 800 mA
Peak collector current ICM 1 A
Base current IB 100 mA
Peak base current IBM 200
Total power dissipation, TS = 79
