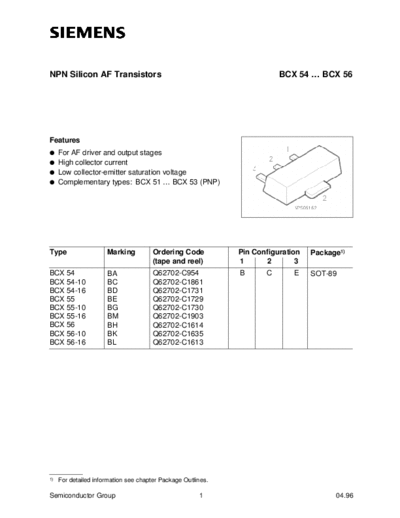

Image preview - the first page of the document
>> Download bcx54_bcx55_bcx56 documenatation <<Text preview - extract from the documentNPN Silicon AF Transistors BCX 54 ... BCX 56
Features
q For AF driver and output stages
q High collector current
q Low collector-emitter saturation voltage
q Complementary types: BCX 51 ... BCX 53 (PNP)
Type Marking Ordering Code Pin Configuration Package1)
(tape and reel) 1 2 3
BCX 54 BA Q62702-C954 B C E SOT-89
BCX 54-10 BC Q62702-C1861
BCX 54-16 BD Q62702-C1731
BCX 55 BE Q62702-C1729
BCX 55-10 BG Q62702-C1730
BCX 55-16 BM Q62702-C1903
BCX 56 BH Q62702-C1614
BCX 56-10 BK Q62702-C1635
BCX 56-16 BL Q62702-C1613
1) For detailed information see chapter Package Outlines.
Semiconductor Group 1 04.96
BCX 54 ... BCX 56
Maximum Ratings
Parameter Symbol Values Unit
BCX 54 BCX 55 BCX 56
Collector-emitter voltage VCE0 45 60 80 V
Collector-base voltage VCB0 45 60 100
Emitter-base voltage VEB0 5 5 5
Collector current IC 1 A
Peak collector current ICM 1.5
Base current IB 100 mA
Peak base current IBM 200
Total power dissipation, TS = 130
