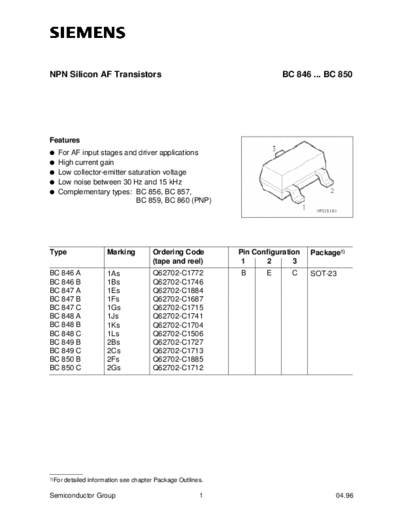

Image preview - the first page of the document
>> Download bc846_bc847_bc848_bc849_bc850 documenatation <<Text preview - extract from the documentNPN Silicon AF Transistors BC 846 ... BC 850
Features
q For AF input stages and driver applications
q High current gain
q Low collector-emitter saturation voltage
q Low noise between 30 Hz and 15 kHz
q Complementary types: BC 856, BC 857,
BC 859, BC 860 (PNP)
Type Marking Ordering Code Pin Configuration Package1)
(tape and reel) 1 2 3
BC 846 A 1As Q62702-C1772 B E C SOT-23
BC 846 B 1Bs Q62702-C1746
BC 847 A 1Es Q62702-C1884
BC 847 B 1Fs Q62702-C1687
BC 847 C 1Gs Q62702-C1715
BC 848 A 1Js Q62702-C1741
BC 848 B 1Ks Q62702-C1704
BC 848 C 1Ls Q62702-C1506
BC 849 B 2Bs Q62702-C1727
BC 849 C 2Cs Q62702-C1713
BC 850 B 2Fs Q62702-C1885
BC 850 C 2Gs Q62702-C1712
1)For detailed information see chapter Package Outlines.
Semiconductor Group 1 04.96
BC 846 ... BC 850
Maximum Ratings
Parameter Symbol Values Unit
BC 846 BC 847 BC 848
BC 850 BC 849
Collector-emitter voltage VCE0 65 45 30 V
Collector-base voltage VCB0 80 50 30
Collector-emitter voltage VCES 80 50 30
Emitter-base voltage VEB0 6 6 5
Collector current IC 100 mA
Peak collector current ICM 200
Peak base current IBM 200
Peak emitter current IEM 200
Total power dissipation, TS = 71
