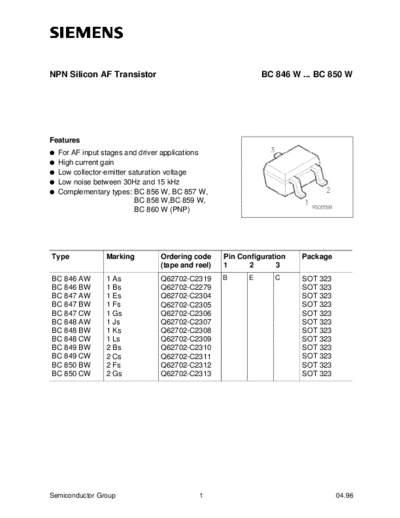

Image preview - the first page of the document
>> Download bc846w_bc847w_bc848w_bc849w_bc850w documenatation <<Text preview - extract from the documentNPN Silicon AF Transistor BC 846 W ... BC 850 W
Features
q For AF input stages and driver applications
q High current gain
q Low collector-emitter saturation voltage
q Low noise between 30Hz and 15 kHz
q Complementary types: BC 856 W, BC 857 W,
BC 858 W,BC 859 W,
BC 860 W (PNP)
Type Marking Ordering code Pin Configuration Package
(tape and reel) 1 2 3
BC 846 AW 1 As Q62702-C2319 B E C SOT 323
BC 846 BW 1 Bs Q62702-C2279 SOT 323
BC 847 AW 1 Es Q62702-C2304 SOT 323
BC 847 BW 1 Fs Q62702-C2305 SOT 323
BC 847 CW 1 Gs Q62702-C2306 SOT 323
BC 848 AW 1 Js Q62702-C2307 SOT 323
BC 848 BW 1 Ks Q62702-C2308 SOT 323
BC 848 CW 1 Ls Q62702-C2309 SOT 323
BC 849 BW 2 Bs Q62702-C2310 SOT 323
BC 849 CW 2 Cs Q62702-C2311 SOT 323
BC 850 BW 2 Fs Q62702-C2312 SOT 323
BC 850 CW 2 Gs Q62702-C2313 SOT 323
Semiconductor Group 1 04.96
BC 846W ... BC 850W
Maximum Ratings
BC846W BC 847 W
Description Symbol BC 849 W BC 848 W Unit
BC 840 W
Collector-emitter voltage VCEO 65 45 30 V
Collector-base voltage VCBO 80 50 30 V
Collector-emitter voltage VCES 80 50 30 V
Emitter-base voltage VEBO 6 6 5 V
Collector current IC 100 mA
Collector peak current ICM 200 mA
Total power dissipation, TS = 115
