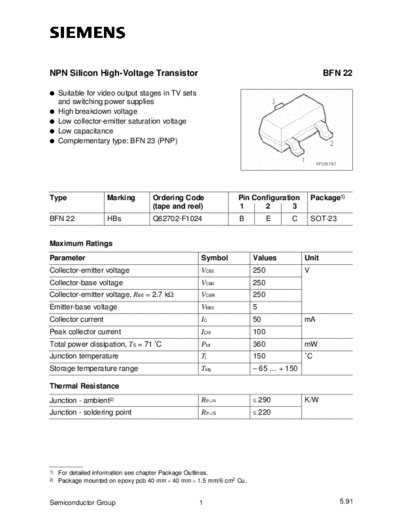

Image preview - the first page of the document
>> Download bfn22 documenatation <<Text preview - extract from the documentNPN Silicon High-Voltage Transistor BFN 22
q Suitable for video output stages in TV sets
and switching power supplies
q High breakdown voltage
q Low collector-emitter saturation voltage
q Low capacitance
q Complementary type: BFN 23 (PNP)
Type Marking Ordering Code Pin Configuration Package1)
(tape and reel) 1 2 3
BFN 22 HBs Q62702-F1024 B E C SOT-23
Maximum Ratings
Parameter Symbol Values Unit
Collector-emitter voltage VCE0 250 V
Collector-base voltage VCB0 250
Collector-emitter voltage, RBE = 2.7 k VCER 250
Emitter-base voltage VEB0 5
Collector current IC 50 mA
Peak collector current ICM 100
Total power dissipation, TS = 71
