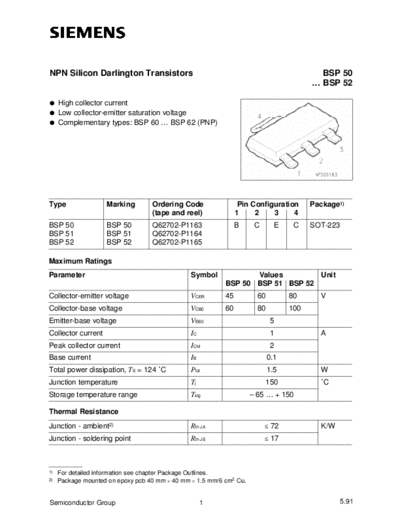

>> Download bsp50_bsp51_bsp52 documenatation <<Text preview - extract from the documentNPN Silicon Darlington Transistors BSP 50
... BSP 52
q High collector current
q Low collector-emitter saturation voltage
q Complementary types: BSP 60 ... BSP 62 (PNP)
Type Marking Ordering Code Pin Configuration Package1)
(tape and reel) 1 2 3 4
BSP 50 BSP 50 Q62702-P1163 B C E C SOT-223
BSP 51 BSP 51 Q62702-P1164
BSP 52 BSP 52 Q62702-P1165
Maximum Ratings
Parameter Symbol Values Unit
BSP 50 BSP 51 BSP 52
Collector-emitter voltage VCER 45 60 80 V
Collector-base voltage VCB0 60 80 100
Emitter-base voltage VEB0 5
Collector current IC 1 A
Peak collector current ICM 2
Base current IB 0.1
Total power dissipation, TS = 124
