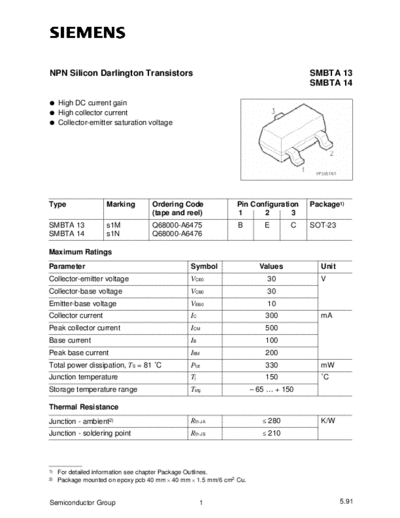

Image preview - the first page of the document
>> Download smbta13 documenatation <<Text preview - extract from the documentNPN Silicon Darlington Transistors SMBTA 13
SMBTA 14
q High DC current gain
q High collector current
q Collector-emitter saturation voltage
Type Marking Ordering Code Pin Configuration Package1)
(tape and reel) 1 2 3
SMBTA 13 s1M Q68000-A6475 B E C SOT-23
SMBTA 14 s1N Q68000-A6476
Maximum Ratings
Parameter Symbol Values Unit
Collector-emitter voltage VCE0 30 V
Collector-base voltage VCB0 30
Emitter-base voltage VEB0 10
Collector current IC 300 mA
Peak collector current ICM 500
Base current IB 100
Peak base current IBM 200
Total power dissipation, TS = 81
