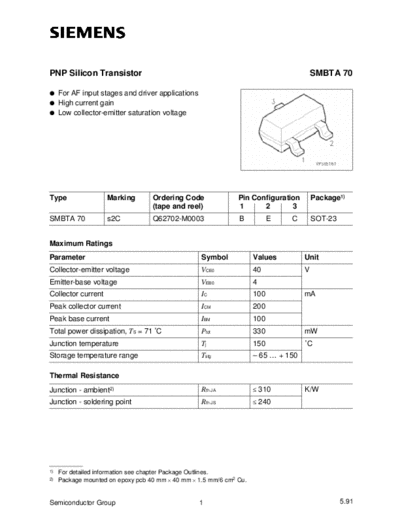

Image preview - the first page of the document
>> Download smbta70 documenatation <<Text preview - extract from the documentPNP Silicon Transistor SMBTA 70
q For AF input stages and driver applications
q High current gain
q Low collector-emitter saturation voltage
Type Marking Ordering Code Pin Configuration Package1)
(tape and reel) 1 2 3
SMBTA 70 s2C Q62702-M0003 B E C SOT-23
Maximum Ratings
Parameter Symbol Values Unit
Collector-emitter voltage VCE0 40 V
Emitter-base voltage VEB0 4
Collector current IC 100 mA
Peak collector current ICM 200
Peak base current IBM 100
Total power dissipation, TS = 71
