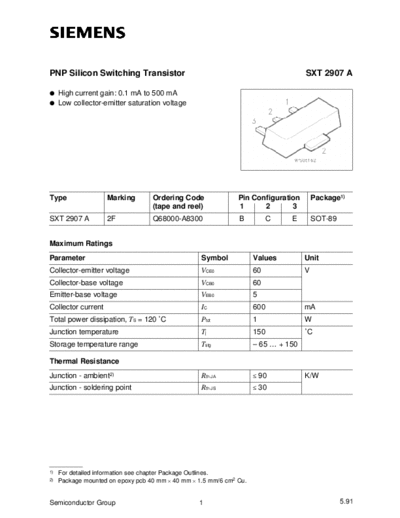

Image preview - the first page of the document
>> Download sxt2907a documenatation <<Text preview - extract from the documentPNP Silicon Switching Transistor SXT 2907 A
q High current gain: 0.1 mA to 500 mA
q Low collector-emitter saturation voltage
Type Marking Ordering Code Pin Configuration Package1)
(tape and reel) 1 2 3
SXT 2907 A 2F Q68000-A8300 B C E SOT-89
Maximum Ratings
Parameter Symbol Values Unit
Collector-emitter voltage VCE0 60 V
Collector-base voltage VCB0 60
Emitter-base voltage VEB0 5
Collector current IC 600 mA
Total power dissipation, TS = 120
