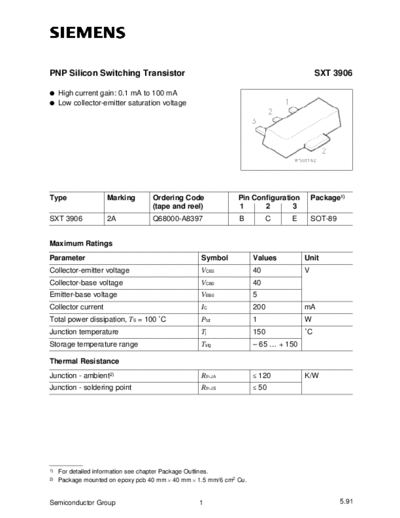

Image preview - the first page of the document
>> Download sxt3906 documenatation <<Text preview - extract from the documentPNP Silicon Switching Transistor SXT 3906
q High current gain: 0.1 mA to 100 mA
q Low collector-emitter saturation voltage
Type Marking Ordering Code Pin Configuration Package1)
(tape and reel) 1 2 3
SXT 3906 2A Q68000-A8397 B C E SOT-89
Maximum Ratings
Parameter Symbol Values Unit
Collector-emitter voltage VCE0 40 V
Collector-base voltage VCB0 40
Emitter-base voltage VEB0 5
Collector current IC 200 mA
Total power dissipation, TS = 100
