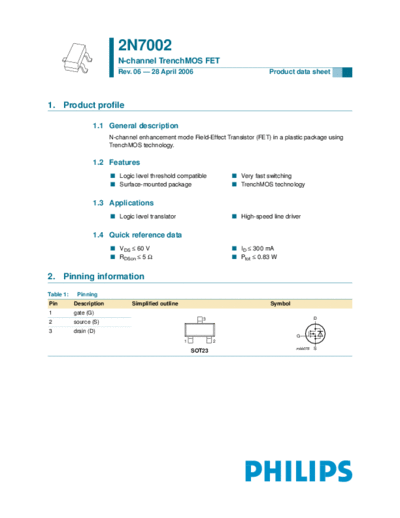

Image preview - the first page of the document



>> Download 2n7002 documenatation <<

Text preview - extract from the document

                            2N7002
                            N-channel TrenchMOS FET
                            Rev. 06 -- 28 April 2006                              Product data sheet




1. Product profile

                   1.1 General description
                         N-channel enhancement mode Field-Effect Transistor (FET) in a plastic package using
                         TrenchMOS technology.

                   1.2 Features
                         s Logic level threshold compatible           s Very fast switching
                         s Surface-mounted package                    s TrenchMOS technology


                   1.3 Applications
                         s Logic level translator                     s High-speed line driver


                   1.4 Quick reference data
                         s VDS  60 V                                  s ID  300 mA
                         s RDSon  5                                   s Ptot  0.83 W


2. Pinning information
Table 1:    Pinning
Pin        Description           Simplified outline                                Symbol
1          gate (G)
                                                             3                                       D
2          source (S)
3          drain (D)
                                                                                            G
                                                      1           2
                                                                                            mbb076   S
                                                          SOT23
Philips Semiconductors                                                                                                     2N7002
                                                                                                N-channel TrenchMOS FET



3. Ordering information
Table 2:    Ordering information
Type number           Package
                      Name            Description                                                                                     Version
2N7002                TO-236AB        plastic surface mounted package; 3 leads                                                        SOT23


4. Limiting values
Table 3:   Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol Parameter                             Conditions                                                     Min                Max                Unit
VDS        drain-source voltage              25
