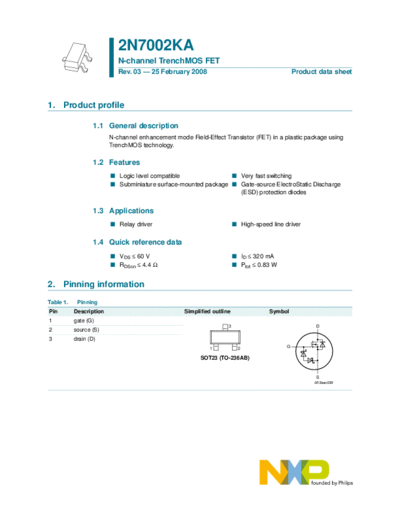

Image preview - the first page of the document



>> Download 2n7002ka documenatation <<

Text preview - extract from the document

                            2N7002KA
                            N-channel TrenchMOS FET
                            Rev. 03 -- 25 February 2008                                        Product data sheet




1. Product profile

                   1.1 General description
                         N-channel enhancement mode Field-Effect Transistor (FET) in a plastic package using
                         TrenchMOS technology.

                   1.2 Features
                         I Logic level compatible               I Very fast switching
                         I Subminiature surface-mounted package I Gate-source ElectroStatic Discharge
                                                                  (ESD) protection diodes


                   1.3 Applications
                         I Relay driver                                 I High-speed line driver


                   1.4 Quick reference data
                         I VDS  60 V                                    I ID  320 mA
                         I RDSon  4.4                                   I Ptot  0.83 W


2. Pinning information
Table 1.    Pinning
Pin        Description                             Simplified outline               Symbol
1          gate (G)
                                                                    3                                 D
2          source (S)
3          drain (D)
                                                            1             2                G

                                                         SOT23 (TO-236AB)


                                                                                                      S
                                                                                                     003aac036
NXP Semiconductors                                                                                    2N7002KA
                                                                                              N-channel TrenchMOS FET



3. Ordering information
Table 2.      Ordering information
Type number             Package
                        Name            Description                                                                    Version
2N7002KA                TO-236AB        plastic surface-mounted package; 3 leads                                       SOT23


4. Limiting values
Table 3.   Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol Parameter                               Conditions                                         Min           Max               Unit
VDS          drain-source voltage              25
