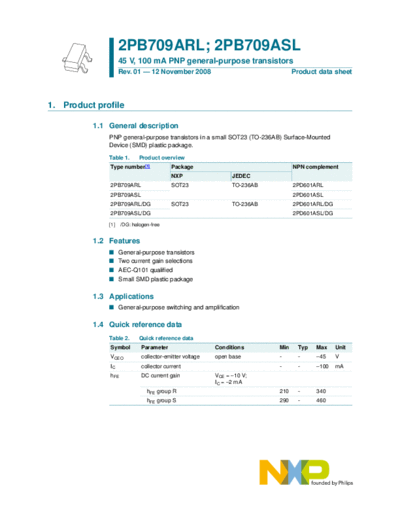

Image preview - the first page of the document



>> Download 2pb709arl-asl documenatation <<

Text preview - extract from the document

                    2PB709ARL; 2PB709ASL
                    45 V, 100 mA PNP general-purpose transistors
                    Rev. 01 -- 12 November 2008                                 Product data sheet




1. Product profile

          1.1 General description
              PNP general-purpose transistors in a small SOT23 (TO-236AB) Surface-Mounted
              Device (SMD) plastic package.

              Table 1.      Product overview
              Type number[1]             Package                                NPN complement
                                         NXP                   JEDEC
              2PB709ARL                  SOT23                 TO-236AB         2PD601ARL
              2PB709ASL                                                         2PD601ASL
              2PB709ARL/DG               SOT23                 TO-236AB         2PD601ARL/DG
              2PB709ASL/DG                                                      2PD601ASL/DG

              [1]   /DG: halogen-free


          1.2 Features
              I     General-purpose transistors
              I     Two current gain selections
              I     AEC-Q101 qualified
              I     Small SMD plastic package

          1.3 Applications
              I General-purpose switching and amplification

          1.4 Quick reference data
              Table 2.      Quick reference data
              Symbol         Parameter                   Conditions       Min    Typ   Max     Unit
              VCEO           collector-emitter voltage   open base        -      -     -45     V
              IC             collector current                            -      -     -100    mA
              hFE            DC current gain             VCE = -10 V;
                                                         IC = -2 mA
                               hFE group R                                210    -     340
                               hFE group S                                290    -     460
NXP Semiconductors                                                2PB709ARL; 2PB709ASL
                                                                       45 V, 100 mA PNP general-purpose transistors



2. Pinning information
                     Table 3.      Pinning
                     Pin              Description                                  Simplified outline   Graphic symbol
                     1                base
                                                                                              3                               3
                     2                emitter
                     3                collector                                                                    1
                                                                                       1          2
                                                                                                                              2
                                                                                                                       sym013




3. Ordering information
                     Table 4.      Ordering information
                     Type number[1]            Package
                                               Name        Description                                                    Version
                     2PB709ARL                 -           plastic surface-mounted package; 3 leads                       SOT23
                     2PB709ASL
                     2PB709ARL/DG
                     2PB709ASL/DG

                     [1]   /DG: halogen-free


4. Marking
                     Table 5.      Marking codes
                     Type number                                             Marking code[1]
                     2PB709ARL                                               SN*
                     2PB709ASL                                               SL*
                     2PB709ARL/DG                                            SS*
                     2PB709ASL/DG                                            SZ*

                     [1]   * = -: made in Hong Kong
                           * = p: made in Hong Kong
                           * = t: made in Malaysia
                           * = W: made in China




2PB709AXL_1
