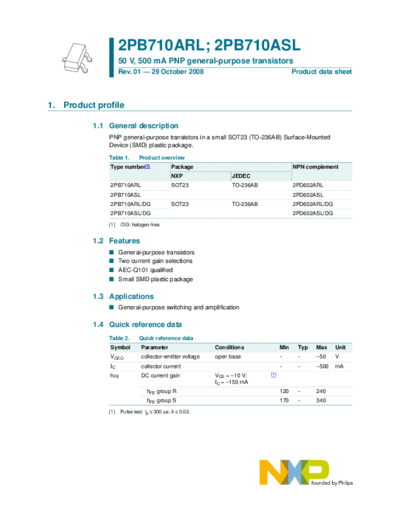

Image preview - the first page of the document



>> Download 2pb710arl-asl documenatation <<

Text preview - extract from the document

                    2PB710ARL; 2PB710ASL
                    50 V, 500 mA PNP general-purpose transistors
                    Rev. 01 -- 29 October 2008                                        Product data sheet




1. Product profile

          1.1 General description
              PNP general-purpose transistors in a small SOT23 (TO-236AB) Surface-Mounted
              Device (SMD) plastic package.

              Table 1.      Product overview
              Type number[1]              Package                                     NPN complement
                                          NXP                  JEDEC
              2PB710ARL                   SOT23                TO-236AB               2PD602ARL
              2PB710ASL                                                               2PD602ASL
              2PB710ARL/DG                SOT23                TO-236AB               2PD602ARL/DG
              2PB710ASL/DG                                                            2PD602ASL/DG

              [1]   /DG: halogen-free


          1.2 Features
              I     General-purpose transistors
              I     Two current gain selections
              I     AEC-Q101 qualified
              I     Small SMD plastic package

          1.3 Applications
              I General-purpose switching and amplification

          1.4 Quick reference data
              Table 2.      Quick reference data
              Symbol         Parameter                   Conditions             Min    Typ   Max     Unit
              VCEO           collector-emitter voltage   open base              -      -     -50     V
              IC             collector current                                  -      -     -500    mA
              hFE            DC current gain             VCE = -10 V;     [1]

                                                         IC = -150 mA
                               hFE group R                                      120    -     240
                               hFE group S                                      170    -     340

              [1]   Pulse test: tp  300
