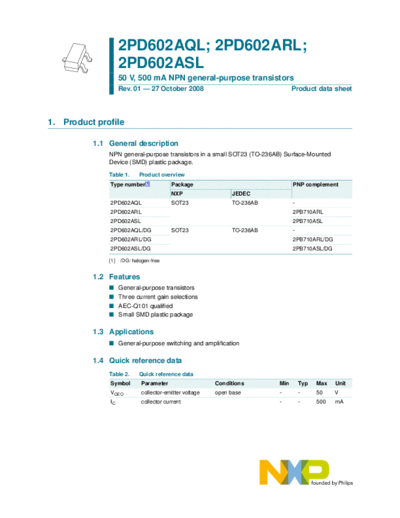

Image preview - the first page of the document



>> Download 2pd602aql-arl-asl documenatation <<

Text preview - extract from the document

                    2PD602AQL; 2PD602ARL;
                    2PD602ASL
                    50 V, 500 mA NPN general-purpose transistors
                    Rev. 01 -- 27 October 2008                                 Product data sheet




1. Product profile

          1.1 General description
              NPN general-purpose transistors in a small SOT23 (TO-236AB) Surface-Mounted
              Device (SMD) plastic package.

              Table 1.      Product overview
              Type number[1]             Package                               PNP complement
                                         NXP                  JEDEC
              2PD602AQL                  SOT23                TO-236AB         -
              2PD602ARL                                                        2PB710ARL
              2PD602ASL                                                        2PB710ASL
              2PD602AQL/DG               SOT23                TO-236AB         -
              2PD602ARL/DG                                                     2PB710ARL/DG
              2PD602ASL/DG                                                     2PB710ASL/DG

              [1]   /DG: halogen-free


          1.2 Features
              I     General-purpose transistors
              I     Three current gain selections
              I     AEC-Q101 qualified
              I     Small SMD plastic package

          1.3 Applications
              I General-purpose switching and amplification

          1.4 Quick reference data
              Table 2.      Quick reference data
              Symbol         Parameter                   Conditions      Min       Typ   Max   Unit
              VCEO           collector-emitter voltage   open base       -         -     50    V
              IC             collector current                           -         -     500   mA
NXP Semiconductors                                                                                         2PD602AxL
                                                                       50 V, 500 mA NPN general-purpose transistors


                     Table 2.      Quick reference data ...continued
                     Symbol         Parameter                         Conditions                       Min   Typ           Max            Unit
                     hFE            DC current gain                   VCE = 10 V;                [1]

                                                                      IC = 150 mA
                                      hFE group Q                                                      85    -             170
                                      hFE group R                                                      120   -             240
                                      hFE group S                                                      170   -             340

                     [1]   Pulse test: tp  300
