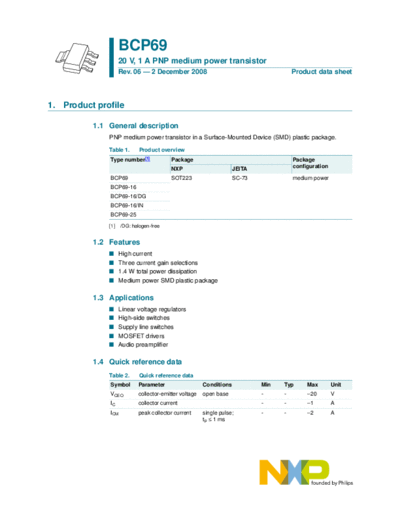

Image preview - the first page of the document



>> Download bcp69 documenatation <<

Text preview - extract from the document

                    BCP69
                    20 V, 1 A PNP medium power transistor
                    Rev. 06 -- 2 December 2008                                        Product data sheet




1. Product profile

          1.1 General description
              PNP medium power transistor in a Surface-Mounted Device (SMD) plastic package.

              Table 1.      Product overview
              Type number[1]             Package                                      Package
                                         NXP                        JEITA             configuration

              BCP69                      SOT223                     SC-73             medium power
              BCP69-16
              BCP69-16/DG
              BCP69-16/IN
              BCP69-25

              [1]   /DG: halogen-free


          1.2 Features
              I     High current
              I     Three current gain selections
              I     1.4 W total power dissipation
              I     Medium power SMD plastic package

          1.3 Applications
              I     Linear voltage regulators
              I     High-side switches
              I     Supply line switches
              I     MOSFET drivers
              I     Audio preamplifier

          1.4 Quick reference data
              Table 2.      Quick reference data
              Symbol       Parameter                   Conditions           Min   Typ      Max        Unit
              VCEO         collector-emitter voltage   open base            -     -        -20        V
              IC           collector current                                -     -        -1         A
              ICM          peak collector current      single pulse;        -     -        -2         A
                                                       tp  1 ms
NXP Semiconductors                                                                                                 BCP69
                                                                              20 V, 1 A PNP medium power transistor


                     Table 2.      Quick reference data ...continued
                     Symbol       Parameter                    Conditions             Min           Typ        Max              Unit
                     hFE          DC current gain              VCE = -1 V;
                                                               IC = -500 mA
                                     BCP69                                            85            -          375
                                     BCP69-16                                         100           -          250
                                     BCP69-16/DG
                                     BCP69-16/IN                                      140           -          230
                                     BCP69-25                                         160           -          375


2. Pinning information
                     Table 3.      Pinning
                     Pin              Description                              Simplified outline         Graphic symbol
                     1                base
                                                                                                4                            2, 4
                     2                collector
                     3                emitter                                                                       1
                     4                collector
                                                                                      1     2       3                          3
                                                                                                                        sym028




3. Ordering information
                     Table 4.      Ordering information
                     Type number[1]            Package
                                               Name      Description                                                        Version
                     BCP69                     SC-73     plastic surface-mounted package with increased                     SOT223
                     BCP69-16                            heatsink; 4 leads

                     BCP69-16/DG
                     BCP69-16/IN
                     BCP69-25

                     [1]   /DG: halogen-free




BCP69_6
