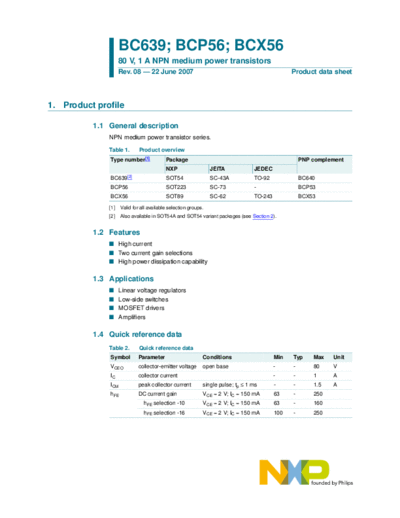

Image preview - the first page of the document
>> Download bc639_bcp56_bcx56 documenatation <<
Text preview - extract from the document
BC639; BCP56; BCX56
80 V, 1 A NPN medium power transistors
Rev. 08 -- 22 June 2007 Product data sheet
1. Product profile
1.1 General description
NPN medium power transistor series.
Table 1. Product overview
Type number[1] Package PNP complement
NXP JEITA JEDEC
BC639[2] SOT54 SC-43A TO-92 BC640
BCP56 SOT223 SC-73 - BCP53
BCX56 SOT89 SC-62 TO-243 BCX53
[1] Valid for all available selection groups.
[2] Also available in SOT54A and SOT54 variant packages (see Section 2).
1.2 Features
I High current
I Two current gain selections
I High power dissipation capability
1.3 Applications
I Linear voltage regulators
I Low-side switches
I MOSFET drivers
I Amplifiers
1.4 Quick reference data
Table 2. Quick reference data
Symbol Parameter Conditions Min Typ Max Unit
VCEO collector-emitter voltage open base - - 80 V
IC collector current - - 1 A
ICM peak collector current single pulse; tp 1 ms - - 1.5 A
hFE DC current gain VCE = 2 V; IC = 150 mA 63 - 250
hFE selection -10 VCE = 2 V; IC = 150 mA 63 - 160
hFE selection -16 VCE = 2 V; IC = 150 mA 100 - 250
NXP Semiconductors BC639; BCP56; BCX56
80 V, 1 A NPN medium power transistors
2. Pinning information
Table 3. Pinning
Pin Description Simplified outline Symbol
SOT54
1 base
2
2 collector
3 emitter 1 1
2
3
3
001aab347
sym056
SOT54A
1 base
2
2 collector
3 emitter 1 1
2
3 3
001aab348
sym056
SOT54 variant
1 base
2
2 collector
3 emitter 1 1
2
3
3
001aab447
sym056
SOT223
1 base
4 2, 4
2 collector
3 emitter 1
4 collector
1 2 3 3
sym016
SOT89
1 emitter
2
2 collector
3 base 3
1
3 2 1 sym042
