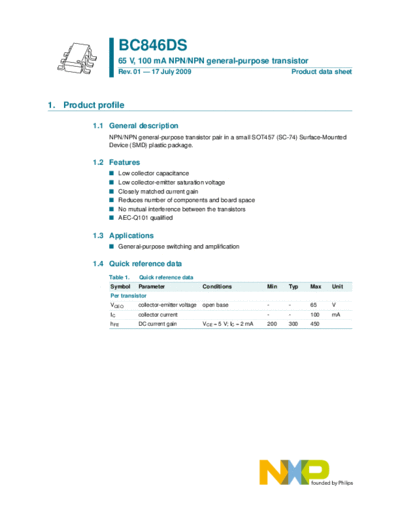

Image preview - the first page of the document



>> Download bc846ds documenatation <<

Text preview - extract from the document

                   BC846DS
                   65 V, 100 mA NPN/NPN general-purpose transistor
                   Rev. 01 -- 17 July 2009                                            Product data sheet




1. Product profile

          1.1 General description
              NPN/NPN general-purpose transistor pair in a small SOT457 (SC-74) Surface-Mounted
              Device (SMD) plastic package.

          1.2 Features
              I    Low collector capacitance
              I    Low collector-emitter saturation voltage
              I    Closely matched current gain
              I    Reduces number of components and board space
              I    No mutual interference between the transistors
              I    AEC-Q101 qualified

          1.3 Applications
              I General-purpose switching and amplification

          1.4 Quick reference data
              Table 1.   Quick reference data
              Symbol     Parameter                   Conditions             Min   Typ      Max   Unit
              Per transistor
              VCEO       collector-emitter voltage   open base              -     -        65    V
              IC         collector current                                  -     -        100   mA
              hFE        DC current gain             VCE = 5 V; IC = 2 mA   200   300      450
NXP Semiconductors                                                                                      BC846DS
                                                                65 V, 100 mA NPN/NPN general-purpose transistor



2. Pinning information
                     Table 2.     Pinning
                     Pin              Description                                Simplified outline     Graphic symbol
                     1                emitter TR1
                                                                                        6   5     4              6      5        4
                     2                base TR1
                     3                collector TR2
                                                                                                                                 TR2
                     4                emitter TR2                                                           TR1
                                                                                        1   2     3
                     5                base TR2
                                                                                                                 1      2        3
                     6                collector TR1
                                                                                                                     sym020




3. Ordering information
                     Table 3.     Ordering information
                     Type number         Package
                                         Name           Description                                                         Version
                     BC846DS             SC-74          plastic surface-mounted package (TSOP6); 6 leads                    SOT457


4. Marking
                     Table 4.     Marking codes
                     Type number                                           Marking code
                     BC846DS                                               ZK


5. Limiting values
                     Table 5.   Limiting values
                     In accordance with the Absolute Maximum Rating System (IEC 60134).
                     Symbol         Parameter                    Conditions                       Min     Max                Unit
                     Per transistor
                     VCBO           collector-base voltage       open emitter                     -       80                 V
                     VCEO           collector-emitter voltage    open base                        -       65                 V
                     VEBO           emitter-base voltage         open collector                   -       6                  V
                     IC             collector current                                             -       100                mA
                     ICM            peak collector current       single pulse;                    -       200                mA
                                                                 tp  1 ms
                     IBM            peak base current            single pulse;                    -       200                mA
                                                                 tp  1 ms
                     Ptot           total power dissipation      Tamb  25
