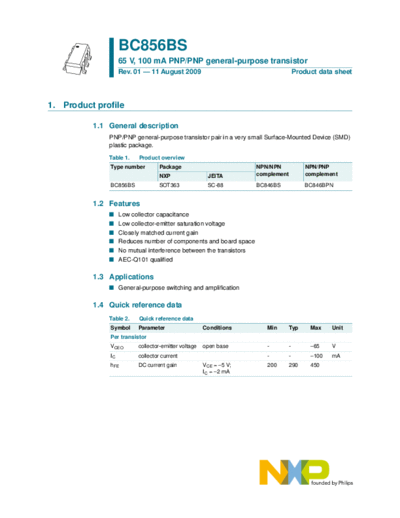

Image preview - the first page of the document



>> Download bc856bs documenatation <<

Text preview - extract from the document

                   BC856BS
                   65 V, 100 mA PNP/PNP general-purpose transistor
                   Rev. 01 -- 11 August 2009                                      Product data sheet




1. Product profile

          1.1 General description
              PNP/PNP general-purpose transistor pair in a very small Surface-Mounted Device (SMD)
              plastic package.

              Table 1.   Product overview
              Type number         Package                           NPN/NPN          NPN/PNP
                                  NXP                 JEITA         complement       complement

              BC856BS             SOT363              SC-88         BC846BS          BC846BPN


          1.2 Features
              I    Low collector capacitance
              I    Low collector-emitter saturation voltage
              I    Closely matched current gain
              I    Reduces number of components and board space
              I    No mutual interference between the transistors
              I    AEC-Q101 qualified

          1.3 Applications
              I General-purpose switching and amplification

          1.4 Quick reference data
              Table 2.   Quick reference data
              Symbol     Parameter                   Conditions        Min    Typ      Max    Unit
              Per transistor
              VCEO       collector-emitter voltage   open base         -      -        -65    V
              IC         collector current                             -      -        -100   mA
              hFE        DC current gain             VCE = -5 V;       200    290      450
                                                     IC = -2 mA
NXP Semiconductors                                                                                     BC856BS
                                                               65 V, 100 mA PNP/PNP general-purpose transistor



2. Pinning information
                     Table 3.     Pinning
                     Pin              Description                                 Simplified outline   Graphic symbol
                     1                emitter TR1
                                                                                         6   5   4              6      5      4
                     2                base TR1
                     3                collector TR2
                                                                                                                                TR2
                     4                emitter TR2                                                          TR1

                     5                base TR2                                           1   2   3
                                                                                                                1      2      3
                     6                collector TR1
                                                                                                                    sym018




3. Ordering information
                     Table 4.     Ordering information
                     Type number          Package
                                          Name        Description                                                          Version
                     BC856BS              SC-88       plastic surface-mounted package; 6 leads                             SOT363


4. Marking
                     Table 5.     Marking codes
                     Type number                                            Marking code[1]
                     BC856BS                                                *E6

                     [1]   * = -: made in Hong Kong
                           * = p: made in Hong Kong
                           * = t: made in Malaysia
                           * = W: made in China




BC856BS_1
